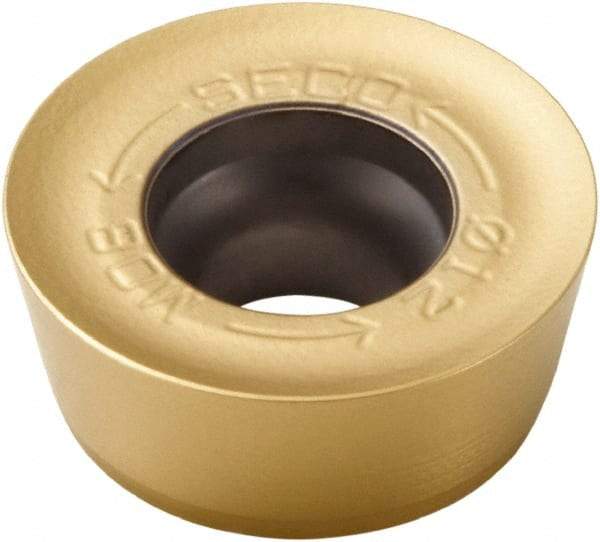

Seco - RPHT0803M0 M06 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 1/8" Thick, 0.315" Inscribed Circle
Item #: 56992423
Brand: Seco
Model #: 18332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPHT |
| Insert Size | 0803M0 |
| Material | Carbide |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | M06 |
| ISO Number | RPHT 0803M0T-M06 |
