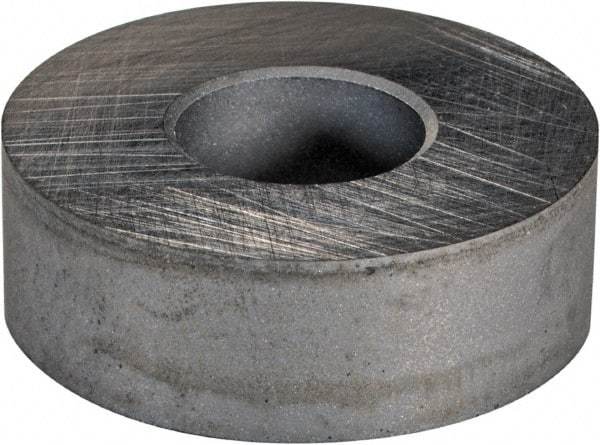

Seco - RNMA64 Grade 883 Carbide Turning Insert - Uncoated, Round, 3/4" Inscr Circle, 1/4" Thick
Item #: 56991961
Brand: Seco
Model #: 01835
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMA |
| Insert Size | 64 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | 883 |
| Coating | Uncoated |
| Material Grade | C2 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Relief Angle | 0 |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
