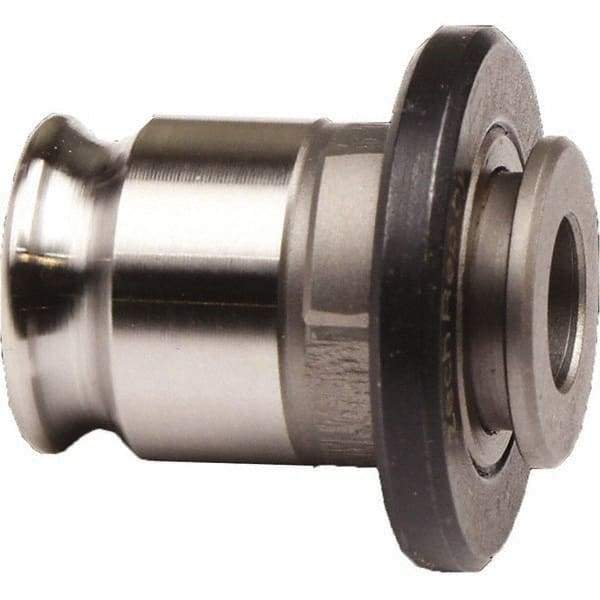

Emuge - 0.3937" Tap Shank Diam, 0.315" Tap Square Size, #1 Tapping Adapter - 0.2756" Projection, 1-1/16" Tap Depth, 1.1221" OAL, 3/4" Shank OD, Through Coolant, Series EM01
Item #: 56987753
Brand: Emuge
Model #: F0561110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 1 |
| Tap Shank Diameter (mm) | 10.00 |
| Tap Shank Diameter (Decimal Inch) | 0.3937 |
| Tap Square Size (mm) | 8.00 |
| Tap Square Size (Decimal Inch) | 0.3150 |
| Quick Change | Yes |
| Projection (mm) | 7.00 |
| Projection (Decimal Inch) | 0.2756 |
| Tap Depth (mm) | 27.00 |
| Tap Depth (Decimal Inch) | 1.0630 |
| Series | EM01 |
| Overall Length (mm) | 28.50 |
| Overall Length (Decimal Inch) | 1.1221 |
| Flange Diameter (mm) | 30.00 |
| Flange Diameter (Decimal Inch) | 1.1811 |
| Outside Shank Diameter (mm) | 19.00 |
| Outside Shank Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | Yes |
| PSC Code | 5136 |
