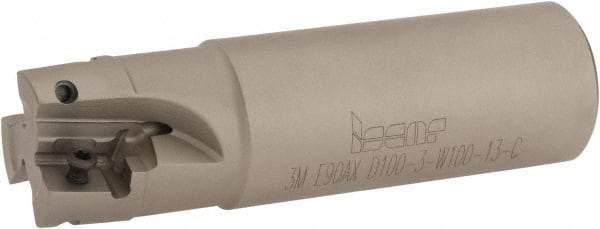

Iscar - 1" Cut Diam, 1/2" Max Depth of Cut, 1" Shank Diam, 3-1/2" OAL, Indexable Square Shoulder End Mill - 3M AXKT 1304.../2006... Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Mill2000
Item #: 56981517
Brand: Iscar
Model #: 3101604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.5000 |
| Lead Angle | 90 |
| Series | Mill2000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 3M E90AX |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Insert Compatibility | 3M AXKT 1304.../2006... |
| Shank Length (Decimal Inch) | 2.2800 |
