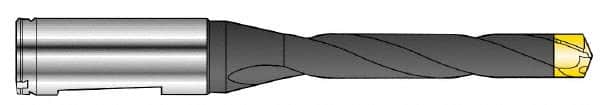

Seco - 15 to 15.99mm Diam, 1.5xD, 25mm Max Depth, 16mm Shank Diam, 39.3mm Flute, 103.3mm OAL, Replaceable Tip Drill - SD100 Insert, SD101 Toolholder, Series SD101
Item #: 56975923
Brand: Seco
Model #: 17529
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD101 |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 25.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | SD100 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 39.30 |
| Body Length (mm) | 55.30 |
| Overall Length (mm) | 103.30 |
| Shank Length (mm) | 48.00 |
