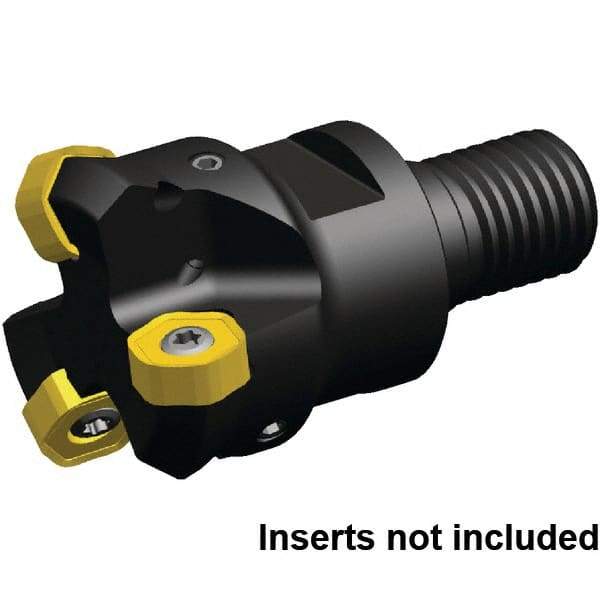

Kennametal - 45° Lead Angle, 33.18mm Max Cut Diam, 25mm Min Cut Diam, 3.23mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, HNGJ0604ANENLD Insert Style, 56.5mm Overall Length, Through Coolant, Straight Shank, 90° Included Angle
Item #: 56876378
Brand: Kennametal
Model #: 4125882
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9840 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 33.18 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3060 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.00 |
| Shank Diameter (Decimal Inch) | 1.1417 |
| Lead Angle | 45 |
| Included Angle | 90 |
| Overall Length (mm) | 56.50 |
| Overall Length (Decimal Inch) | 2.2240 |
| Overall Height (Decimal Inch) | 1.1417 |
| Insert Style | HNGJ0604ANENLD |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Maximum Depth of Cut (mm) | 3.23 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 3 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2600 |
| Weldon Flat | No |
| Axial Rake Angle | -7.000 |
| Modular Connection Size | M16 |
| Shank Length (mm) | 24.50 |
| Shank Length (Decimal Inch) | 0.9646 |
| Maximum RPM | 20000 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
