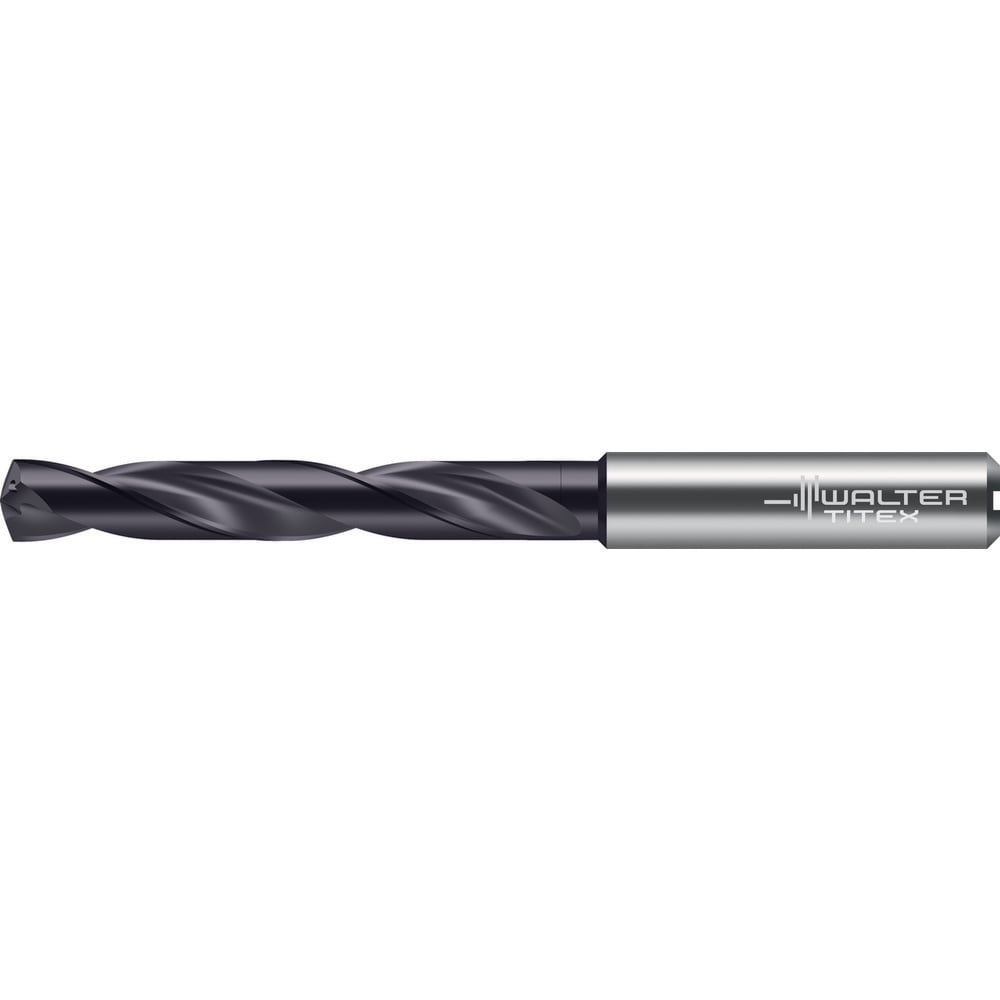

Jobber Length Drill Bits; Drill Bit Size (Inch): 9/32; Drill Bit Size (mm): 7.14; Drill Bit Size (Decimal Inch): 0.2812; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: Multi-layer
Item #: 83029843
Brand: Walter-Titex
Model #: 8324972
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Drill Bit Size (mm) | 7.14 |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Series | DC180 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.30 |
| Drill Point Length (Decimal Inch) | 0.0512 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | UNITED STATES |
