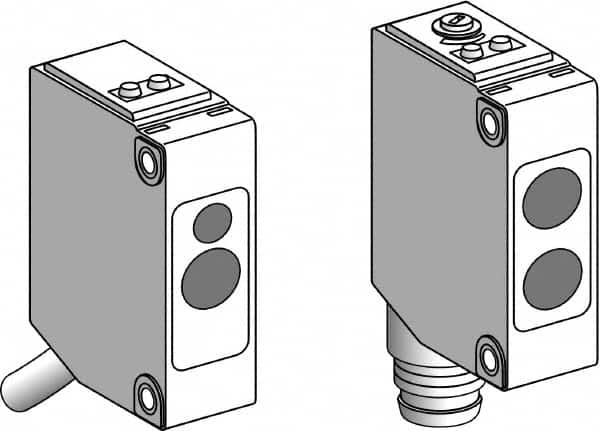

Telemecanique Sensors - M8 Connector, 15m Nominal Distance, Shock and Vibration Resistant, Through Beam Photoelectric Sensor - 12 to 24 VDC, 1000 Hz, PBT, 20mm Long x 11mm Wide x 43mm High
Item #: 56841216
Brand: Telemecanique Sensors
Model #: XUM2ANCNM8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Through-beam |
| Output Circuit Type | NPN |
| Maximum Nominal Sensing Distance (Meters) | 15.00 |
| Connector Type | M8 |
| Voltage | 12-24 VDC |
| Frequency Rating (Hz) | 1000 |
| Housing Material | PBT |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 20 |
| Overall Width/Diameter (mm) | 11 |
| Overall Height (mm) | 43 |
| Shape | Rectangular |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | -22 |
| For Use With | OsiSense XU |
| Includes | Receiver XUM2ANCNM8R; Transmitter XUM2AKCNM8T |
| Standards Met | CE; C-Tick; cULus |
