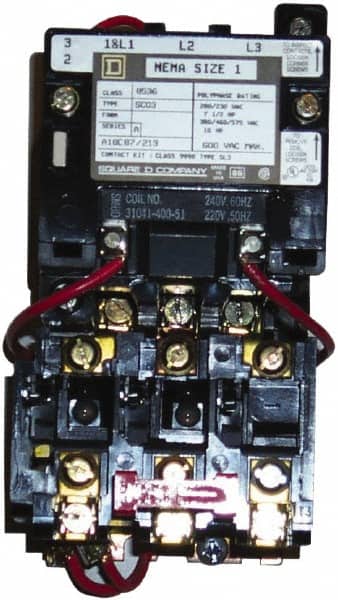

Square D - 208 Coil VAC at 60 Hz, 27 Amp, NEMA Size 1P, Nonreversible Open Enclosure NEMA Motor Starter - 1 Phase hp: 3 at 115 VAC, 5 at 230 VAC - Americas Industrial Supply

Square D - 208 Coil VAC at 60 Hz, 27 Amp, NEMA Size 1P, Nonreversible Open Enclosure NEMA Motor Starter - 1 Phase hp: 3 at 115 VAC, 5 at 230 VAC


Item #: 56824105
Brand: Square D
Model #: 8536SCO2V08
Exact Tooling IR#: 04

Features and Benefits

Open housings are designed to disconnect the motor from the line at the time of starting or stopping of equipment. Ideal for inertial loads and they are finger safe.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
Open - no enclosures are starters without a protective enclosure.
Product Specifications
Amperage 27
NEMA Size 1P
Coil Voltage 208 VAC @ 60 Hz
Enclosure Type Open
Action NonReversible
NEMA Enclosure Rating Open - No Enclosure
Horsepower at 1 Phase 3 @ 115 VAC; 5 @ 230 VAC
Standards Met CSA; NEMA; RoHS Compliant; UL Listed
