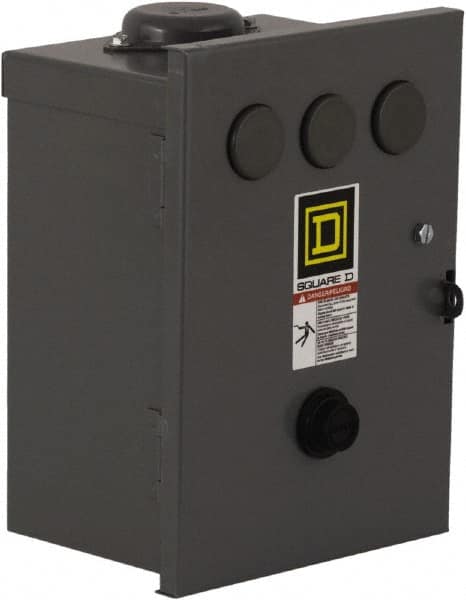

Square D - 440 Coil VAC at 50 Hz, 480 Coil VAC at 60 Hz, 18 Amp, Nonreversible Enclosed Enclosure NEMA Motor Starter - 3 Phase hp: 3 at 200 VAC, 3 at 230 VAC, 5 at 460 VAC, 5 at 575 VAC, 3R Enclosure Rating
Item #: 56815921
Brand: Square D
Model #: 8536SBH2V06A
Exact Tooling IR#: 04
Features and Benefits
Enclosed housings are designed to ensure that the motor is never disconnected from power during starting. Ideal for frictional loads and prevention of electrical shocks and dust.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
NEMA 3R refers to enclosures constructed for either indoor or outdoor use. They provide a degree of protection from falling dirt, rain, sleet, snow and external formation of ice on the enclosure.
| Product Specifications | |
|---|---|
| Amperage | 18 |
| NEMA Size | 0 |
| Coil Voltage | 440 VAC @ 50 Hz; 480 VAC @ 60 Hz |
| Enclosure Type | Enclosed |
| Action | NonReversible |
| NEMA Enclosure Rating | 3R |
| Horsepower at 3 Phase | 3 @ 200 VAC; 3 @ 230 VAC; 5 @ 460 VAC; 5 @ 575 VAC |
| Standards Met | CSA; NEMA; RoHS Compliant; UL Listed |
