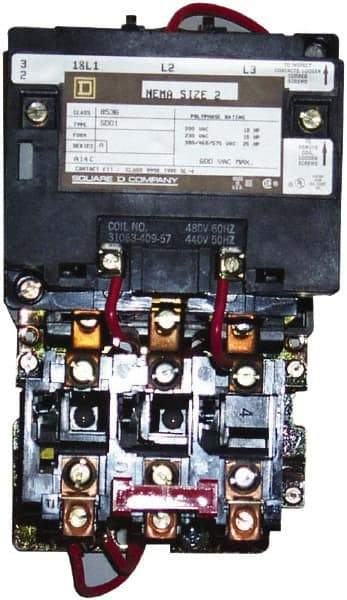

Square D - 110 Coil VAC at 50 Hz, 120 Coil VAC at 60 Hz, 45 Amp, NEMA Size 2, Nonreversible Open Enclosure NEMA Motor Starter - 3 Phase hp: 10 at 200 VAC, 15 at 230 VAC, 25 at 460 VAC, 25 at 575 VAC
Item #: 56814536
Brand: Square D
Model #: 8536SDO1V02SX11
Exact Tooling IR#: 04
Features and Benefits
Open housings are designed to disconnect the motor from the line at the time of starting or stopping of equipment. Ideal for inertial loads and they are finger safe.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
Open - no enclosures are starters without a protective enclosure.
| Product Specifications | |
|---|---|
| Amperage | 45 |
| NEMA Size | 2 |
| Coil Voltage | 110 VAC @ 50 Hz; 120 VAC @ 60 Hz |
| Enclosure Type | Open |
| Action | NonReversible |
| NEMA Enclosure Rating | Open - No Enclosure |
| Horsepower at 3 Phase | 10 @ 200 VAC; 15 @ 230 VAC; 25 @ 460 VAC; 25 @ 575 VAC |
| Standards Met | CSA; NEMA; RoHS Compliant; UL Listed |
