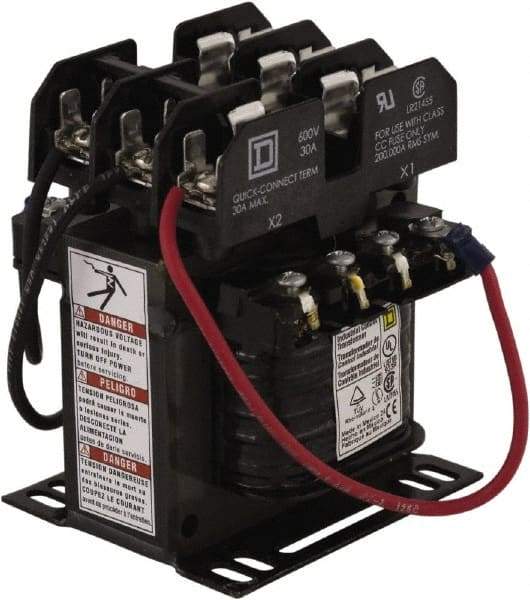

Square D - 100 VA, Top Mount Fuse Block Control Transformer - 50/60 Hz, 3.34 Inch Deep x 4.18 Inch High
Item #: 56795271
Brand: Square D
Model #: 9070TF100D16
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Rating (VA) | 100 |
| Input Voltage | 600 V |
| Output Voltage | 24 V |
| Fuse Status | Fused |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | Panel |
| Fuse Location | Top Mount Fuse Block |
| Overall Width (Decimal Inch) | 3.3800 |
| Overall Width (mm) | 86 |
| Overall Height (mm) | 106 |
| Overall Height (Decimal Inch) | 4.1800 |
| Overall Depth (mm) | 85 |
| Overall Depth (Decimal Inch) | 3.3400 |
| Standards Met | CE Certified; CSA Certified; ISO 9001; NEC; NOM Certified; TUV; UL Listed |
