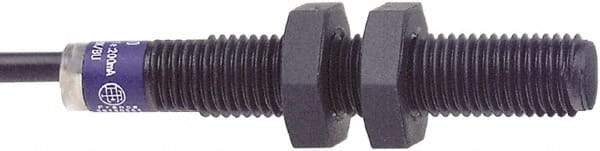

Telemecanique Sensors - NPN, PNP, 2.5mm Detection, Cylinder, Inductive Proximity Sensor - 2 Wires, IP67, 24 to 240 VAC/VDC @ 50/60 Hz, M8x1 Thread, 50mm Long
Item #: 56783046
Brand: Telemecanique Sensors
Model #: XS4P08MA230
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN; PNP |
| Connector Type | Cable |
| Number of Wires | 2 |
| Detection Distance (mm) | 2.50 |
| Maximum Voltage | 24-240 VAC/VDC @ 50/60 Hz |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 5-100 |
| Response Frequency (Hz) | 25; 3000 |
| Thread Size | M8x1 |
| Housing Material | PPS |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 50 |
| Standards Met | CCC; CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
