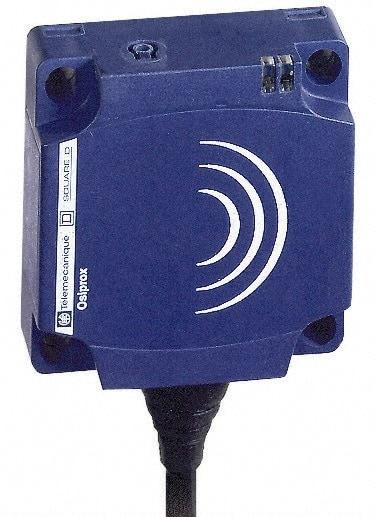

Telemecanique Sensors - PNP, NC, 15 to 25mm Detection, Flat, Inductive Proximity Sensor - 3 Wires, IP68, 12 to 24 VDC, 40mm Wide
Item #: 56782428
Brand: Telemecanique Sensors
Model #: XS8C1A1PBL2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Flat |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | Cable |
| Number of Wires | 3 |
| Detection Distance (mm) | 15.00; 25.00 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 40 |
| Ingress Protection Rating | IP68 |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 1000 |
| Housing Material | PBT |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
