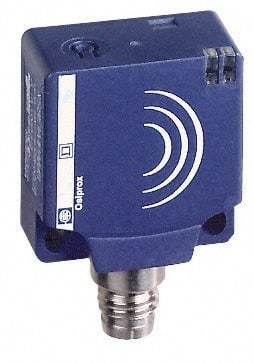

Telemecanique Sensors - PNP, NC, 10 to 15mm Detection, Flat, Inductive Proximity Sensor - 3 Wires, IP67, 12 to 24 VDC, 26mm Wide
Item #: 56782261
Brand: Telemecanique Sensors
Model #: XS8E1A1PBM8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Flat |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | 3-pin M8 Male |
| Number of Wires | 3 |
| Detection Distance (mm) | 10.00; 15.00 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 26 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Response Frequency (Hz) | 2000 |
| Housing Material | PBT |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
