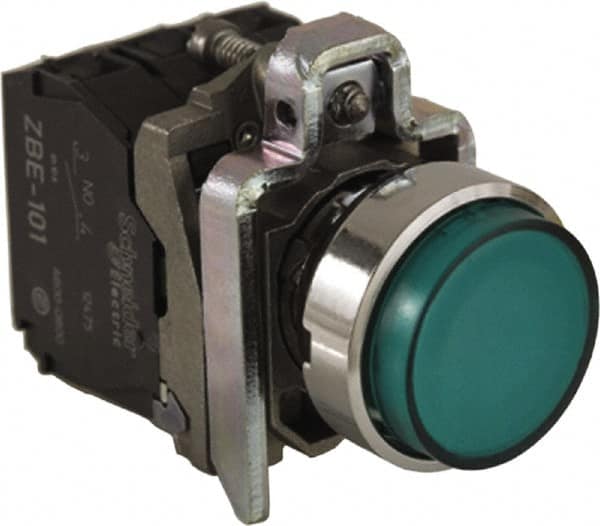

Schneider Electric - 0.87 Inch Mount Hole, Extended Straight, Pushbutton Switch - Round, Green Pushbutton, Illuminated, Momentary (MO), Anticorrosive, Dust Resistant and Vaportight
Item #: 56717952
Brand: Schneider Electric
Model #: XB4BW13B5
Exact Tooling IR#: 04
Features and Benefits
Illuminated pushbuttons offer a light within the button fo added safety in darker areas.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 22 |
| Mounting Hole Diameter (Decimal Inch) | 0.8700 |
| Pushbutton Type | Extended (Straight) |
| Pushbutton Shape | Round |
| Pushbutton Color | Green |
| Operator Illumination | Illuminated |
| Operation Type | Momentary (MO) |
| Amperage | 10 |
| Voltage | 600 V |
| Contact Configuration | NC/NO |
| Terminal Type | Screw |
| NEMA Rating | 4; 13; 4X |
| Resistance Features | Anti-Corrosive; Dust Resistant; Vaportight |
| Standards Met | CE; CSA LR44087 Class 3211 03; UL Listed File E164353 CCN NKCR; Utilization Category AC-15; Utilization Category DC-13 |
