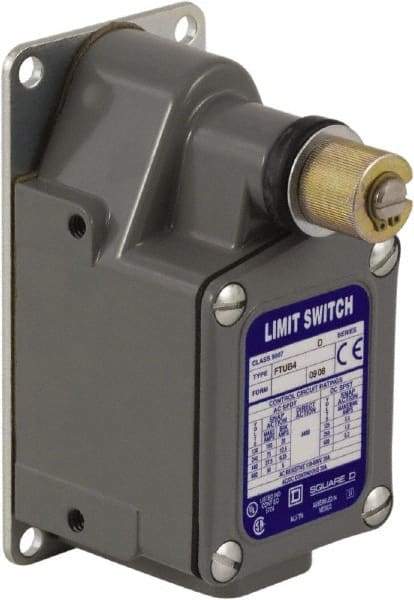

Square D - SPDT, 600 VAC, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch - 1, 2, 4, 12, 13 NEMA Rating, IP67 IPR Rating
Item #: 56709025
Brand: Square D
Model #: 9007FTUB1M11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Spring Return |
| Voltage | 600 VAC |
| Contact Form | SPDT |
| Terminal Type | Screw Terminal |
| Connection Type | M20 |
| Actuator Location | Side |
| Material | Zinc |
| Amperage | 12 |
| Actuator Length (Decimal Inch) | 2.9000 |
| NEMA Rating | 1; 2; 4; 12; 13 |
| Ingress Protection Rating | IP67 |
| Travel (Degrees) | 14 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -10 |
| Overall Width (Decimal Inch) | 2-1/4 |
| Overall Depth (Decimal Inch) | 3.4100 |
| Standards Met | IEC 60068-2-27; IEC 60068-2-6; IEC 60529; IEC 61140; RoHS Compliant |
