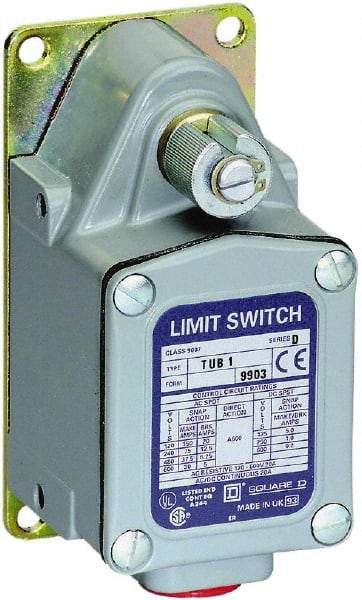

Square D - 3PDT, NC/NO, 600 VAC, Screw Terminal, Rotary Head Actuator, General Purpose Limit Switch - 1, 2, 4, 12, 13 NEMA Rating, IP65, IP66, IP67 IPR Rating
Item #: 56708811
Brand: Square D
Model #: 9007TSC1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Head |
| Voltage | 600 VAC |
| Contact Form | 3PDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Actuator Location | Side |
| Material | Zinc |
| Amperage | 12 |
| Actuator Length (Decimal Inch) | 2.9000 |
| NEMA Rating | 1; 2; 4; 12; 13 |
| Ingress Protection Rating | IP65; IP66; IP67 |
| Travel (Degrees) | 12 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -10 |
| Overall Width (Decimal Inch) | 6.4000 |
| Standards Met | CE; CSA; UL 508; UL Listed |
