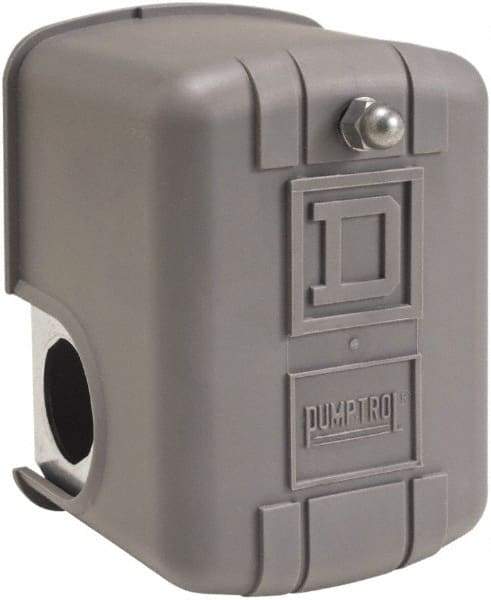

Square D - 1 NEMA Rated, DP, 100 psi, Air Compressor, Electromechanical Pressure and Level Switch - Fixed Pressure, 115 VAC, 1/4 Inch Connector, Screw Terminal, For Use with Power Circuits
Item #: 56707714
Brand: Square D
Model #: 9013FHG2J27PU2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Air Compressor; Electromechanical |
| NEMA Rating | 1 |
| Maximum Pressure Setting | 100 psi |
| Differential Pressure Type | Fixed |
| Maximum Differential Pressure (psig) | 20 |
| Voltage | 115 VAC |
| Contact Form | DP |
| Connector Size (Decimal Inch) | 0.2500 |
| Connector Size (Inch) | 1/4 |
| Terminal Type | Screw |
| For Use With | Power Circuits |
| Includes | Pulsation Plug; Slip on Connectors |
| Standards Met | ANSI/NSF Standard 61; CSA File No. LR25490 Class 3211 06; FDA 21CFR.2600; NEC Article 430-84; UL 508; UL File No. E12158 CCN NKPZ |
