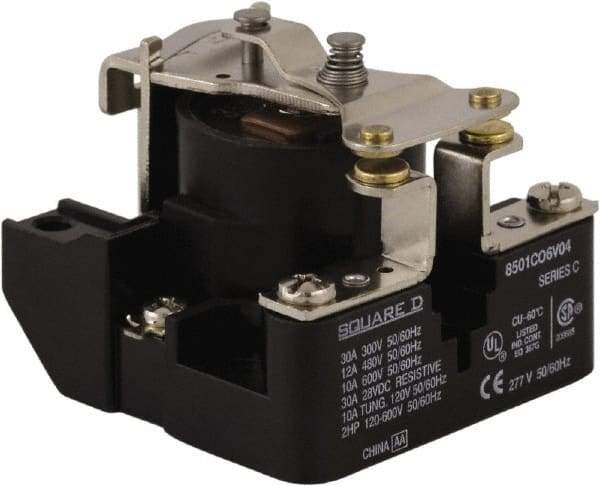

Square D - 2 hp, 10 VA Power Rating, Electromechanical Screw Clamp General Purpose Relay - 10 Amp at 600 V & 40 Amp at 277 VAC, SPST, 208 VAC at 50/60 Hz, 63.6mm Wide x 50.3mm High x 63.2mm Deep
Item #: 56702848
Brand: Square D
Model #: 8501CO6V08
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 208 VAC @ 50/60 Hz |
| Terminal Type | Screw Clamp |
| Contact Form | SPST |
| Amperage | 10 @ 600 V; 40 @ 277 VAC |
| Maximum Power Rating (W) | 4 |
| Maximum Power Rating (VA) | 10 |
| Horsepower (HP) | 2 |
| Overall Height (mm) | 50.30 |
| Overall Height (Decimal Inch) | 1.9800 |
| Overall Width (mm) | 63.60 |
| Overall Width (Decimal Inch) | 2-1/2 |
| Overall Depth (mm) | 63.20 |
| Overall Depth (Decimal Inch) | 2.4900 |
| Standards Met | CSA File 218139 Class 3211 04; IEC 60947-4-1; RoHS Compliant; UL Listed File E78351 |
