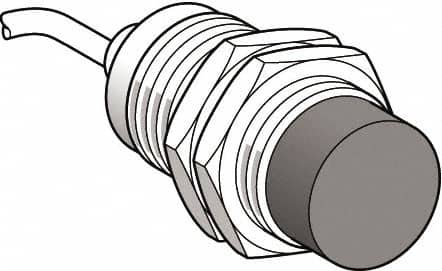

Telemecanique Sensors - PNP, 15mm Detection, Cylinder, Inductive Proximity Sensor - 3 Wires, IP67, 12 VDC, 12 VDC, 24 VDC, M30x1.5 Thread, 51mm Long x 30mm Wide
Item #: 56688161
Brand: Telemecanique Sensors
Model #: XS230BLPAL5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | PNP |
| Connector Type | Cable |
| Number of Wires | 3 |
| Detection Distance (mm) | 15.00 |
| Sensor Head Size | M30 |
| Maximum Voltage | 24 VDC |
| Overall Width/Diameter (mm) | 30 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Minimum Voltage | 12 VDC |
| Response Frequency (Hz) | 60 |
| Thread Size | M30x1.5 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 51 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; IEC 60068-2-6; IEC 60068-2-7; IEC 60529; RoHS Compliant; UL Listed |
