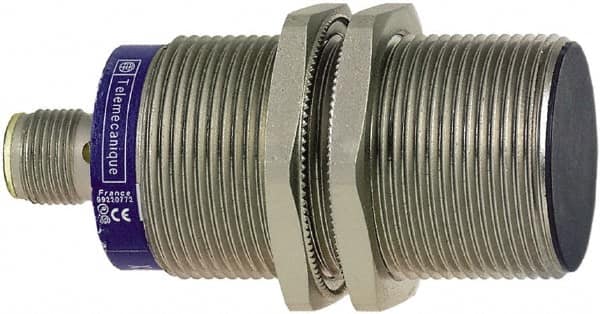

Telemecanique Sensors - NPN, PNP, 10mm Detection, Cylinder, Inductive Proximity Sensor - 2 Wires, IP67, IP69, 12 to 48 VDC, M30x1.5 Thread, 74mm Long
Item #: 56687510
Brand: Telemecanique Sensors
Model #: XS530B1CAM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN; PNP |
| Connector Type | 4-pin M12 Male |
| Number of Wires | 2 |
| Detection Distance (mm) | 10.00 |
| Maximum Voltage | 12-48 VDC |
| Ingress Protection Rating | IP67; IP69 |
| Maximum Load Capacity (mA) | 1-1/2 - 100 |
| Response Frequency (Hz) | 2000 |
| Thread Size | M30x1.5 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 74 |
| Standards Met | CCC; CSA; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
