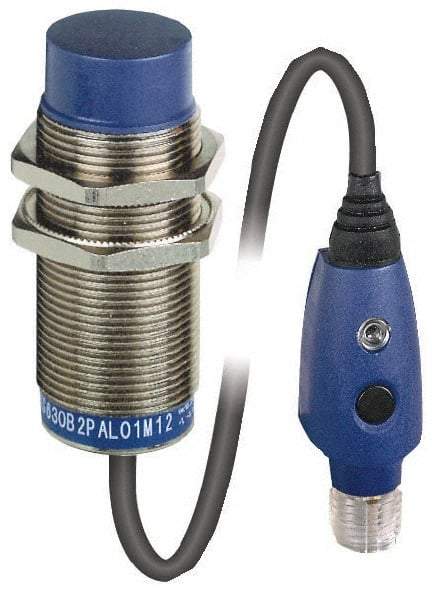

Telemecanique Sensors - PNP, NC, 11 to 18mm Detection, Cylinder, Inductive Proximity Sensor - 3 Wires, IP67, IP69, 12 to 24 VDC, M30x1.5 Thread, 63mm Long
Item #: 56686884
Brand: Telemecanique Sensors
Model #: XS630B2PBL01M12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | 4-pin M12 Male |
| Number of Wires | 3 |
| Detection Distance (mm) | 11.00; 18.00 |
| Maximum Voltage | 12-24 VDC |
| Ingress Protection Rating | IP67; IP69 |
| Maximum Load Capacity (mA) | 100 |
| Response Frequency (Hz) | 1000 |
| Thread Size | M30x1.5 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 63 |
| Standards Met | CSA; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
