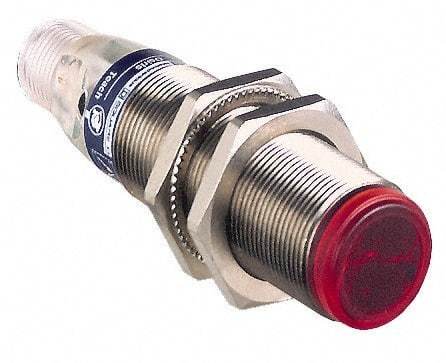

Telemecanique Sensors - 4 Pin M12 Connector, 20m Nominal Distance, Shock and Vibration Resistant, Multimode Photoelectric Sensor - 12 to 24 VDC, 250 Hz, Brass, 78mm Long x 18mm Wide x 7 Inch High
Item #: 56680317
Brand: Telemecanique Sensors
Model #: XUB0BNSNM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Multimode |
| Output Circuit Type | NPN |
| Maximum Nominal Sensing Distance (Meters) | 20.00 |
| Connector Type | 4-pin M12 |
| Voltage | 12-24 VDC |
| Frequency Rating (Hz) | 250 |
| Ingress Protection Rating | IP65; IP67; IP69K |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 78 |
| Overall Width/Diameter (mm) | 18 |
| Overall Height (Decimal Inch) | 7 |
| Shape | Cylindrical |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| For Use With | OsiSense XU |
| Standards Met | CE; CSA; UL |
