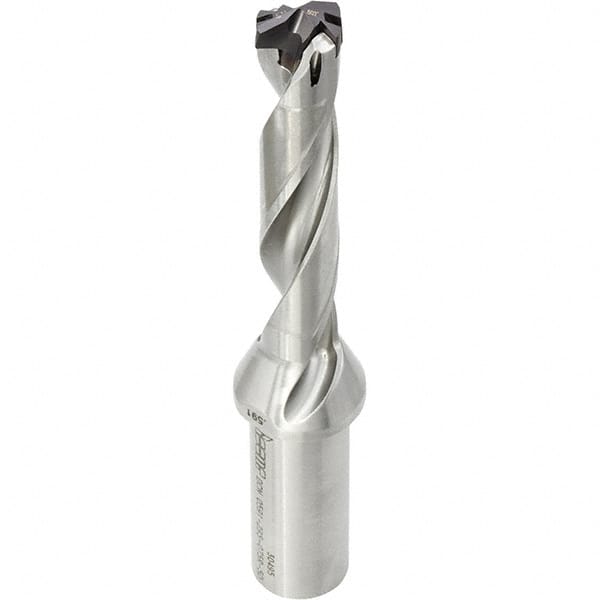

Replaceable Tip Drill: 0.551 to 0.567'' Drill Dia, 1.75″ Max Depth, 0.625'' Flatted Shank Uses FCP, HCP-IQ, ICG, ICK, ICK-2M, ICM, ICN, ICP, ICP-2M & QCP-2M Inserts, 4.34″ OAL, Through Coolant
Item #: 56615628
Brand: Iscar
Model #: 3202448
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (Decimal Inch) | 0.5670 |
| Maximum Drill Depth (Decimal Inch) | 1.7500 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Compatible Insert Style | ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M; ICG |
| Compatible Insert Size Code | 140 |
| Overall Length (Decimal Inch) | 4.3400 |
| Series | SumoCham |
| Toolholder Style | DCN A-3D |
| Body Length (Decimal Inch) | 2.4500 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
