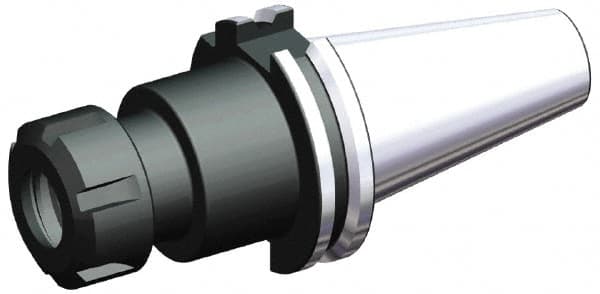

Kennametal - 2.03mm to 20.57mm Capacity, 70mm Projection, DV40 Taper Shank, ER32 Collet Chuck - 138.25mm OAL
Item #: 56535115
Brand: Kennametal
Model #: 1263809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | DV40 |
| Projection (mm) | 70.00 |
| Projection (Decimal Inch) | 2.7600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0800 |
| Minimum Collet Capacity (mm) | 2.03 |
| Maximum Collet Capacity (mm) | 20.57 |
| Maximum Collet Capacity (Decimal Inch) | 0.8100 |
| Overall Length (mm) | 138.25 |
| Overall Length (Decimal Inch) | 5.4429 |
| Actuator Type | Wrench |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| PSC Code | 5136 |
| Balanced to (RPM) | 10000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9690 |
| Collet Nut Diameter (mm) | 50.01 |
