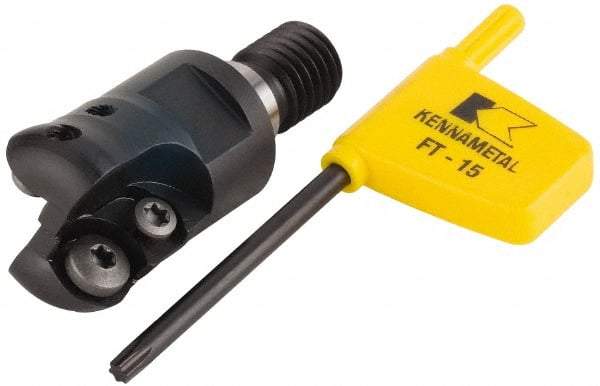

Kennametal - 25.4mm Cutting Diam, 1" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RDHX 12T3M0S Insert, KDM Toolholder
Item #: 56513286
Brand: Kennametal
Model #: 2511464
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDHX 12T3M0S |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 34.93 |
| Overall Length (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.3750 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 13.41 |
| Head Length (mm) | 34.93 |
| Head Length (Inch) | 1-3/8 |
| Head Length (Decimal Inch) | 1.3750 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Modular Connection Size | M12 |
