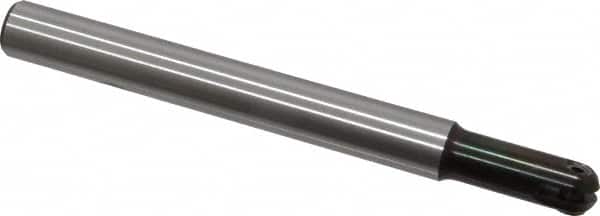

LMT - 1/2" Cut Diam, 1.26" Max Depth of Cut, 1/2" Shank Diam, 5.12" OAL, Indexable Ball Nose End Mill - 1.26" Head Length, Straight Shank, EBG-R Toolholder, WPR 0500 Insert
Item #: 56445935
Brand: LMT
Model #: 88115
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | WPR 0500 |
| Toolholder Style | EBG-R |
| Overall Length (Decimal Inch) | 5.1200 |
| Insert Holding Method | Screw |
| Toolholder Material | High Speed Steel |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.2600 |
| Neck Diameter (Decimal Inch) | 0.4100 |
