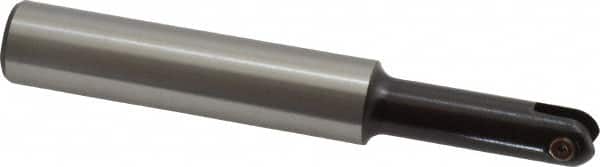

LMT - 3/8" Cut Diam, 1.34" Max Depth of Cut, 1/2" Shank Diam, 3.54" OAL, Indexable Ball Nose End Mill - 1.34" Head Length, Straight Shank, EBG-R Toolholder, WPR 0375 Insert
Item #: 56445927
Brand: LMT
Model #: 88114
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (Decimal Inch) | 1.3400 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | WPR 0375 |
| Toolholder Style | EBG-R |
| Overall Length (Decimal Inch) | 3.5400 |
| Insert Holding Method | Screw |
| Toolholder Material | High Speed Steel |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.3400 |
| Neck Diameter (Decimal Inch) | 0.3400 |
