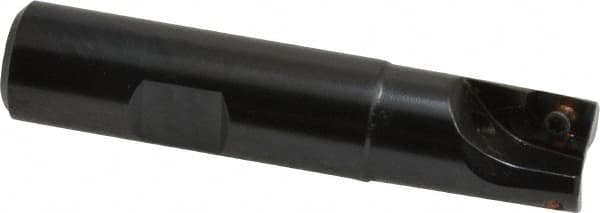

LMT - 5/8" Cut Diam, 0.354" Max Depth of Cut, 5/8" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - AD...0903...R Inserts, Weldon Shank, Series Univex
Item #: 56444938
Brand: LMT
Model #: 50394
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Series | Univex |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EMU |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1000 |
| Weldon Flat | Yes |
| Insert Compatibility | AD...0903...R |
