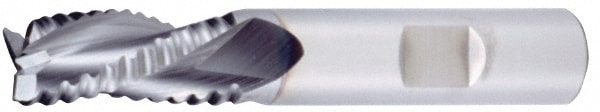

Brand: Widia / Part #: 2840146
Item #: 80510985
Brand: Widia
Model #: 2840146
Product Specifications
| Mill Diameter (Fractional Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Mill Material | Powdered Metal |
| Number Of Flutes | 3 |
| Pitch | Coarse |
| Length of Cut | 1-5/8 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Coating/Finish | TiCN |
| Overall Length (Decimal Inch) | 3.8750 |
| Centercutting | Yes |
| Shank Type | Weldon Flat |
| End Type | Single |
| Extended Reach | No |
| Chamfer Width (Decimal Inch) | 0.0140 |
| Coolant Through | No |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | Yes |
| Maximum Helix Angle | 35 |
| Minimum Helix Angle | 35 |
| Chamfer Angle | 45 |
| Material Grade | M42 |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0002 to -0.0005 in |
| Mill Diameter Tolerance | +0.0047 to -0.0047 in |
| Overall Length (Inch) | 3-7/8 |
| Series | 6A0R |
