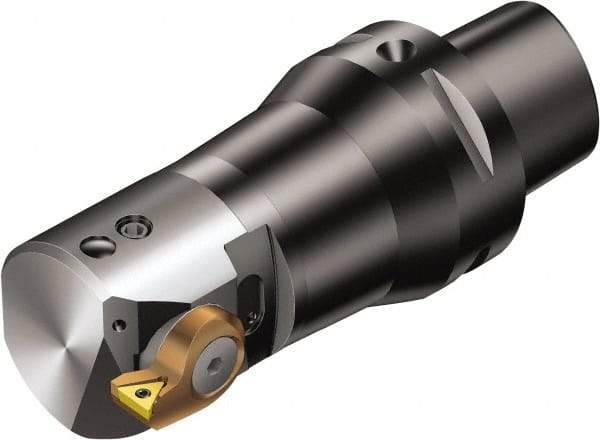

Sandvik Coromant - Right Hand Cut, 23mm Min Bore Diam, Steel Modular Boring Cutting Unit Head - 3" Max Bore Depth, Through Coolant, Compatible with TCMT 1.2(1.2)0825..TC-Cx (2)
Item #: 56268063
Brand: Sandvik Coromant
Model #: 6352205
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series Name | CoroBore 825 |
| Minimum Bore Diameter (mm) | 23.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9055 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 76.00 |
| Maximum Bore Depth (Decimal Inch) | 2.9921 |
| Insert Style | TCMT 1.2(1.2)0825..TC-Cx (2) |
| Head Length/Projection (mm) | 76.00 |
| Head Length/Projection (Decimal Inch) | 2.9921 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Connection Size | C3 |
| Maximum Bore Diameter (mm) | 29.00 |
| Maximum Bore Diameter (Decimal Inch) | 1.1417 |
| Head Diameter Excluding Insert (mm) | 32.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.2598 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | TCMT 06 T1 02 |
| Series | CoroBore 825 |
| Modular Connection Size | C3 |
| Includes | Adaptor; Cartridge; Key; Slide Extension |
