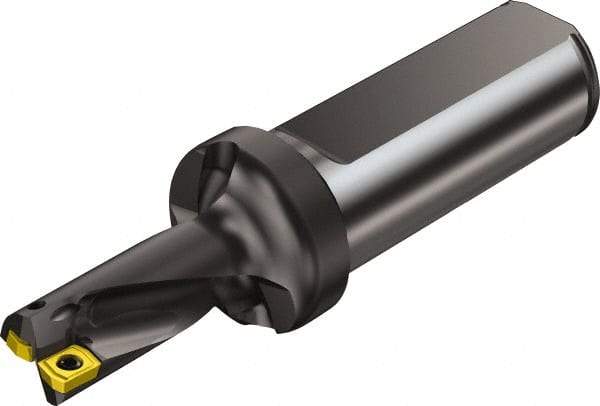

Sandvik Coromant - 105mm Max Drill Depth, 2xD, 50mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 56089667
Brand: Sandvik Coromant
Model #: 5765488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 50.00 |
| Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Depth (mm) | 105.00 |
| Maximum Drill Depth (Decimal Inch) | 4.1339 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Diameter (mm) | 51.60 |
| Overall Length/Projection (mm) | 210.00 |
| Overall Length/Projection (Decimal Inch) | 8.2677 |
| Insert Compatibility | 880-080508H-C-GM; 880-0805W08H-P-GM |
| Flute Length (mm) | 100.00 |
| Flute Length (Decimal Inch) | 3.9370 |
| Body Length (Decimal Inch) | 5.4799 |
| Body Length (mm) | 139.19 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.80 |
