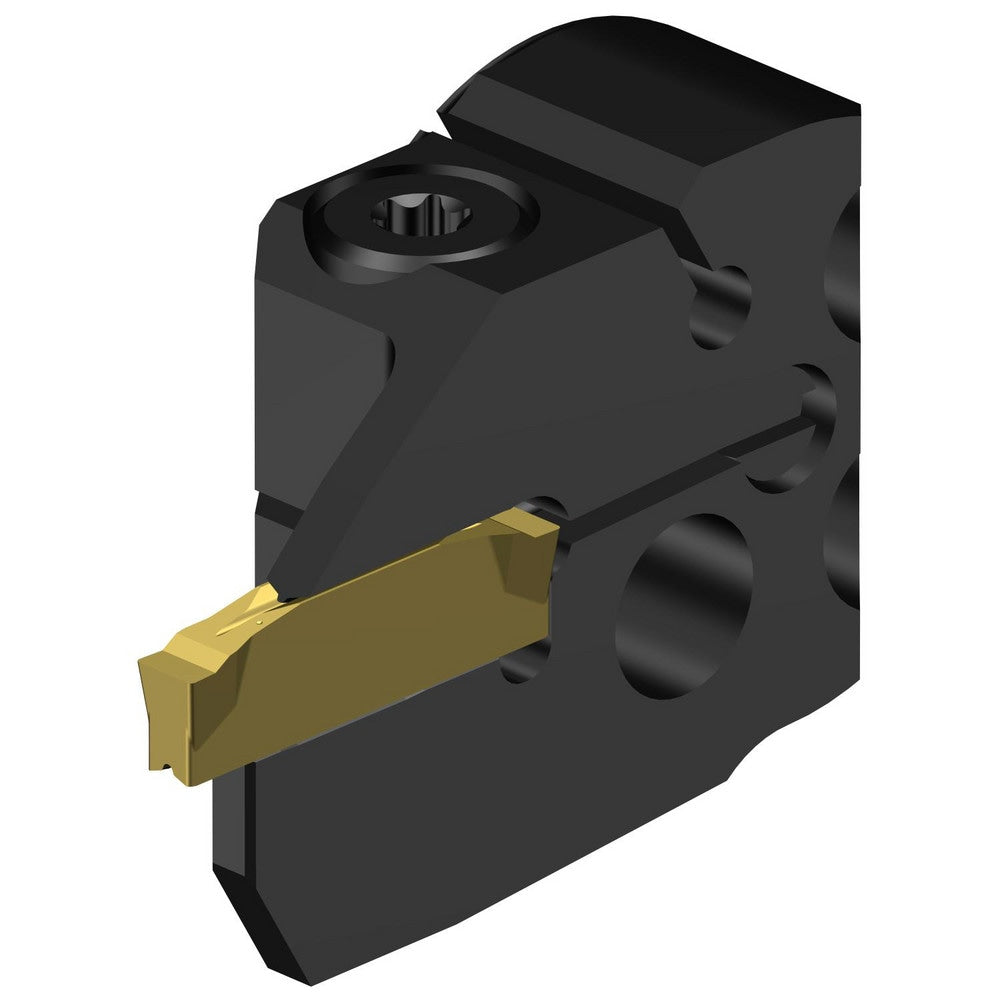

Modular Grooving Cutting Unit Heads; System Size: 25; Maximum Depth of Cut (Decimal Inch): 0.5118; Maximum Depth of Cut (mm): 13.00; Minimum Groove Width (Decimal Inch): 1.2835; Minimum Groove Width (mm): 32.60; Maximum Groove Width (Decimal Inch): 1.2835
Item #: 01586155
Brand: Sandvik Coromant
Model #: 8352936
Product Specifications
| System Size | 25 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Minimum Groove Width (Decimal Inch) | 1.2835 |
| Minimum Groove Width (mm) | 32.60 |
| Maximum Groove Width (Decimal Inch) | 1.2835 |
| Maximum Groove Width (mm) | 32.60 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | G |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 32.60 |
| Center to Cutting Edge (Decimal Inch) | 1.2835 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size G (C2I-G2-0300-) |
| Applications | Parting and Grooving |
| Head Length Projection (Decimal Inch) | 0.5512 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 14.00 |
| UNSPSC Code | 27112809 |
