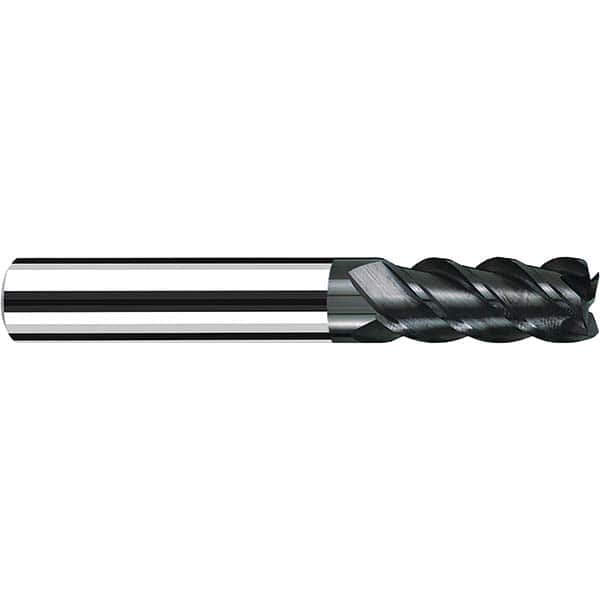

Fraisa - 3/8, 1" LOC, 3/8" Shank Diam, 3" OAL, 4 Flute Solid Carbide Square End Mill
Item #: 11707288
Brand: Fraisa
Model #: B15640432
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Diamond (CVD) coated tools are the hardest of the coatings. It is used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper and carbon fiber.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/8 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Material | Solid Carbide |
| Finish/Coating | Diamond |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Flute Type | Spiral |
| Chipbreaker | No |
| Series/List | GX |
