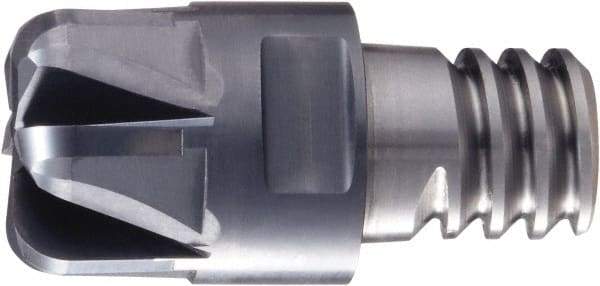

OSG - PXRE Grade XP6305 Carbide Chamfer Milling Tip Insert - SiC Finish, 6 Flutes, 16mm Cutting Diam, 7mm Depth of Cut
Item #: 55881288
Brand: OSG
Model #: 7830202
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
SiC is a silicon-based nano-technological coating that resists higher temperatures than TiALN. It is commonly used on non-ferrous materials and hardened steels.
| Product Specifications | |
|---|---|
| Series | 78PXRE |
| Milling Tip Style | PXRE |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | XP6305 |
| Depth of Cut (mm) | 7.00 |
| Number of Flutes | 6 |
| Coating | SiC |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (mm) | 3.00 |
| Coating Process | PVD |
