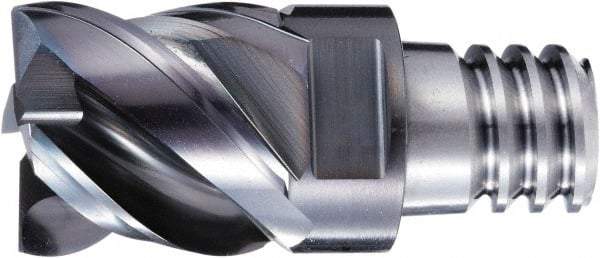

OSG - PXVC Grade XP3225 Carbide Chamfer Milling Tip Insert - Cr Finish, 4 Flutes, 16mm Cutting Diam, 16mm Depth of Cut, 45/48° Helix
Item #: 55880652
Brand: OSG
Model #: 7835019
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Cr is a chromium multi-layered composite coating that has high hard and heat resistance properties. It is commonly used on medium-to-high carbon steel and other difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Series | 78PXVC |
| Milling Tip Style | PXVC |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | XP3225 |
| Depth of Cut (mm) | 16.00 |
| Number of Flutes | 4 |
| Coating | Cr |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (mm) | 3.00 |
| Coating Process | PVD |
| Helix Angle | 45/48 |
