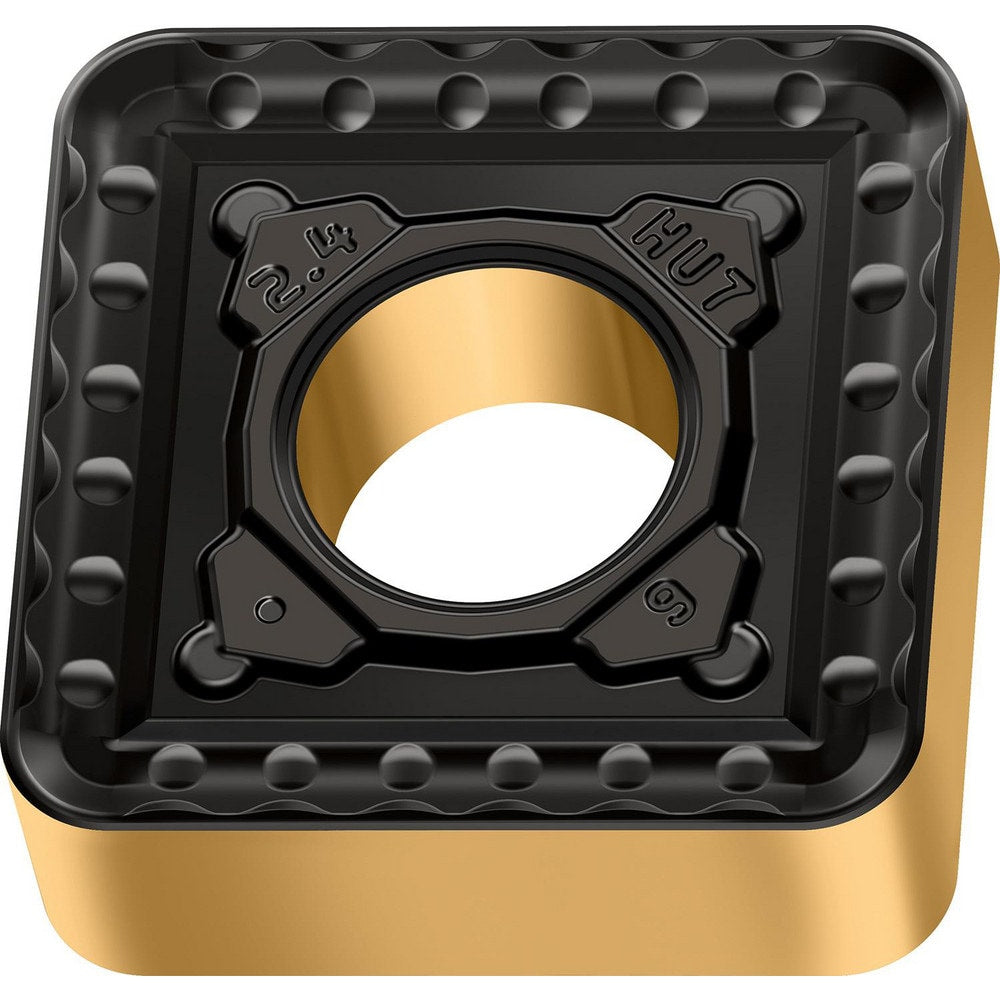

Turning Insert: SNMM866HU7 WPP20G, Carbide
Item #: 84156983
Brand: Walter
Model #: 8138449
Product Specifications
| ANSI Insert Code | SNMM866 |
| ISO Insert Code | SNMM250924 |
| Relief Angle | 0.000 |
| Insert Style | SNMM |
| Corner Radius (mm) | 2.40 |
| Included Angle | 90.00 |
| Manufacturer Grade | WPP20G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 9.53 |
| Series | SNMM |
| Inscribed Circle (mm) | 25.40 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Chip Breaker Operation | Heavy Machining |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Mm) ( - 0 Decimals) | 9.1200 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 25.40 |
| Manufacturers Catalog Number | SNMM250924-HU7 WPP20G |
| Chip Breaker | HU7 |
| Width (mm - 2 Decimals) | 25.40 |
| ANSI Size Code | 866 |
| ISO Size Code | 250924 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 25 |
| Country of Origin | Germany |
