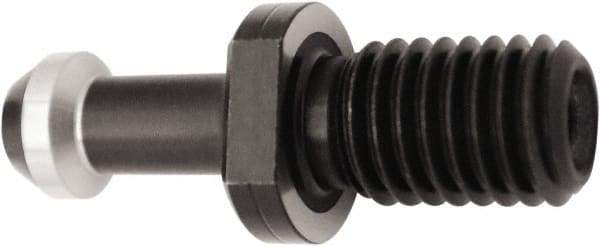

Accupro - C Style, CAT50 Taper, 1-8 Thread, 15° Angle Radius, High Torque Retention Knob - 2.9291" OAL, 1.1024" Knob Diam, 0.9901" Flange Thickness, 1.3444" from Knob to Flange
Item #: 55833305
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | CAT50 |
| Thread Size | 1-8 |
| Angle Radius | 15.00 |
| Knob Diameter (Decimal Inch) | 1.1024 |
| Through Coolant | No |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.8268 |
| Overall Length (Decimal Inch) | 2.9291 |
| Knob to Flange Length (Decimal Inch) | 1.3444 |
| Flange Thickness (Decimal Inch) | 0.9901 |
