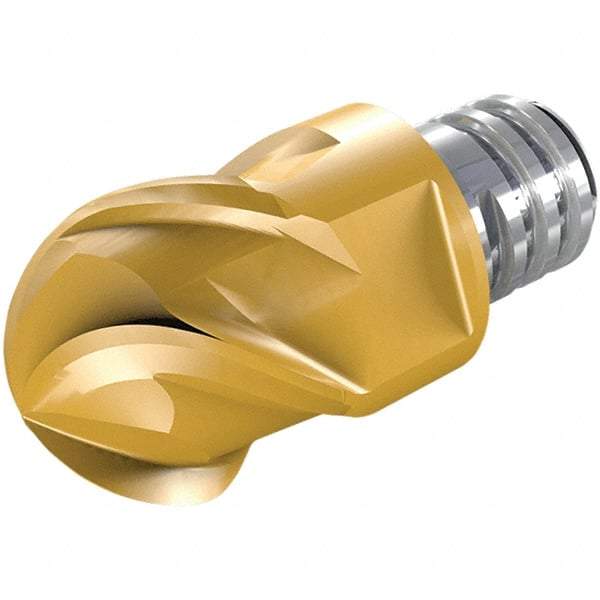

Iscar - MM EBC Grade IC903 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 4 Flutes, 20mm Cutting Diam, 6mm Depth of Cut, 25.5mm Extension, 0.393" Cnr Rad, 45° Helix
Item #: 55755185
Brand: Iscar
Model #: 5668692
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EBC |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Material Grade | Ultra Fine Grain |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 6.00 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Corner Radius (mm) | 9.97 |
| Corner Radius (Decimal Inch) | 0.3930 |
| Coating Process | PVD |
| Extension From Holder (mm) | 25.50 |
| Thread Size | T12 |
| Helix Angle | 45 |
| Style | MM EBC200B15-4T12CF |
| Manufacturers Catalog Number | MM EBC200B15-4T12CF |
