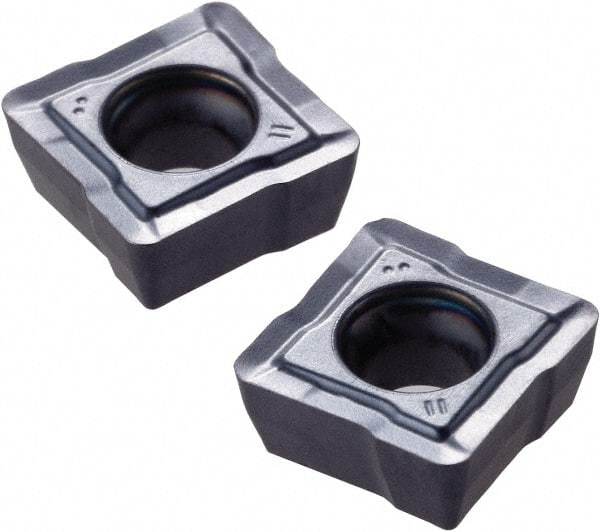

OSG - XCMT073106 DM Grade XP9020 Carbide Indexable Drill Insert - TiAlN Finish, Square, 19/64" Inscribed Circle
Item #: 55705149
Brand: OSG
Model #: 7823067
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | XCMT |
| Insert Size | 073106 |
| Material | Carbide |
| Manufacturer's Grade | XP9020 |
| Inscribed Circle (Inch) | 19/64 |
| Thickness (mm) | 3.10 |
| Corner Radius (mm) | 0.60 |
| Shape | Square |
| Width (mm) | 7.42 |
| Relief Angle | 8 |
| Included Angle | 180 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | DM |
