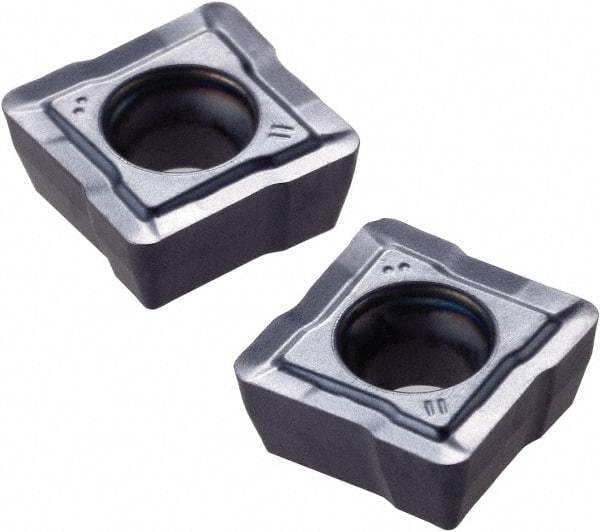

OSG - XCMT094008 DN Grade CK110 Carbide Indexable Drill Insert - Uncoated, Square, 25/64" Inscribed Circle
Item #: 55705115
Brand: OSG
Model #: 7823269
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | XCMT |
| Insert Size | 094008 |
| Material | Carbide |
| Manufacturer's Grade | CK110 |
| Inscribed Circle (Inch) | 25/64 |
| Thickness (mm) | 4.00 |
| Corner Radius (mm) | 0.80 |
| Shape | Square |
| Width (mm) | 10.04 |
| Relief Angle | 8 |
| Included Angle | 180 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Cutting Direction | Right Hand |
| Chipbreaker | DN |
