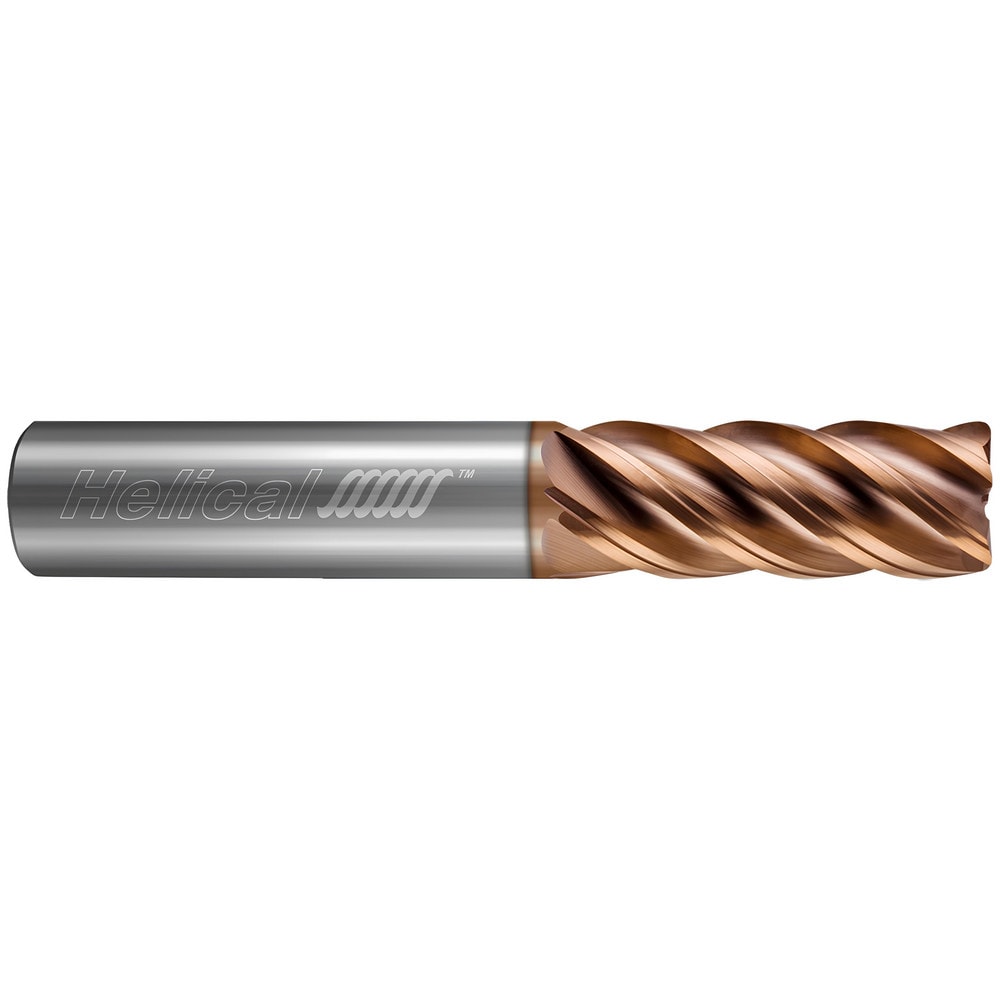

Corner Radius End Mill: 1/2" Dia, 1" LOC, 0.50 mm Radius, 3 Flute, Solid Carbide
Item #: 26318261
Brand: Helical Solutions
Model #: 83662
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Zplus |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | -0.0020 to 0.0020 in |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | -0.0620/0.0620 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Secondary Workpiece Material Code | P; S; H; M |
| Series | H45AL-3 |
| TIR Maximum (Decimal Inch) | 0.0003 |
| Material Application | Non-Ferrous Metal; Aluminum |
| Coating Classification | PVD |
| Proprietary Coating Designation | Proprietary |
| For Use With. | High Precision Toolholders |
| Helix Style | High |
