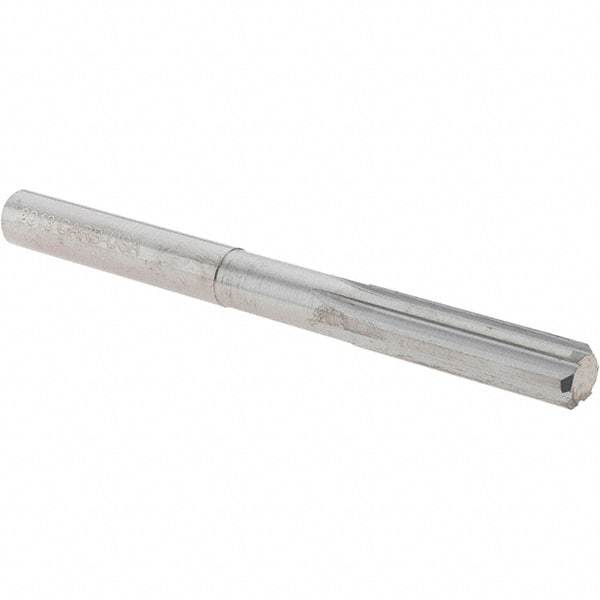

OSG - 7.4mm Solid Carbide Chucking Reamer - Straight Flute, 7.4mm Straight Shank, 29mm Flute Length, 83mm OAL
Item #: 55447007
Brand: OSG
Model #: 300-2913
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 7.40 |
| Reamer Diameter (Decimal Inch) | 0.2913 |
| Reamer Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 83.00 |
| Flute Length (mm) | 29.00 |
| Variable Diameter Reamer Type | None |
| Maximum Shank Diameter (mm) | 7.40 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
