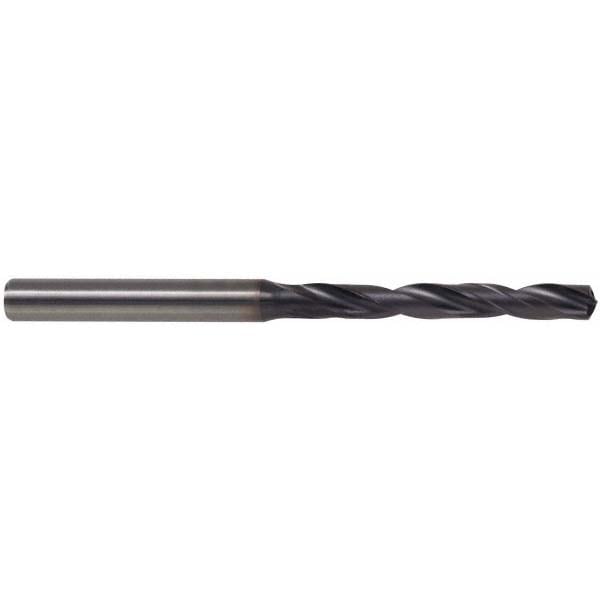

Jobber Drill: 13.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 74368507
Brand: Kennametal
Model #: 3640791
Product Specifications
| Drill Bit Size (mm) | 13.50 |
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | AlTiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Specification Number | DIN 6537K |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Spiral Type | Regular |
| Flute Length (mm) | 77.00 |
| Flute Length (Decimal Inch) | 3.0315 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 35/64 |
| Shank Diameter (mm) | 14 |
| Maximum Drilling Depth (Decimal Inch) | 2.9375 |
| Maximum Drilling Depth (mm) | 70.00 |
| Shank Length (mm) | 45 |
| Drill Point Length (mm) | 2.60 |
| Drill Bit Diameter Tolerance | 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
