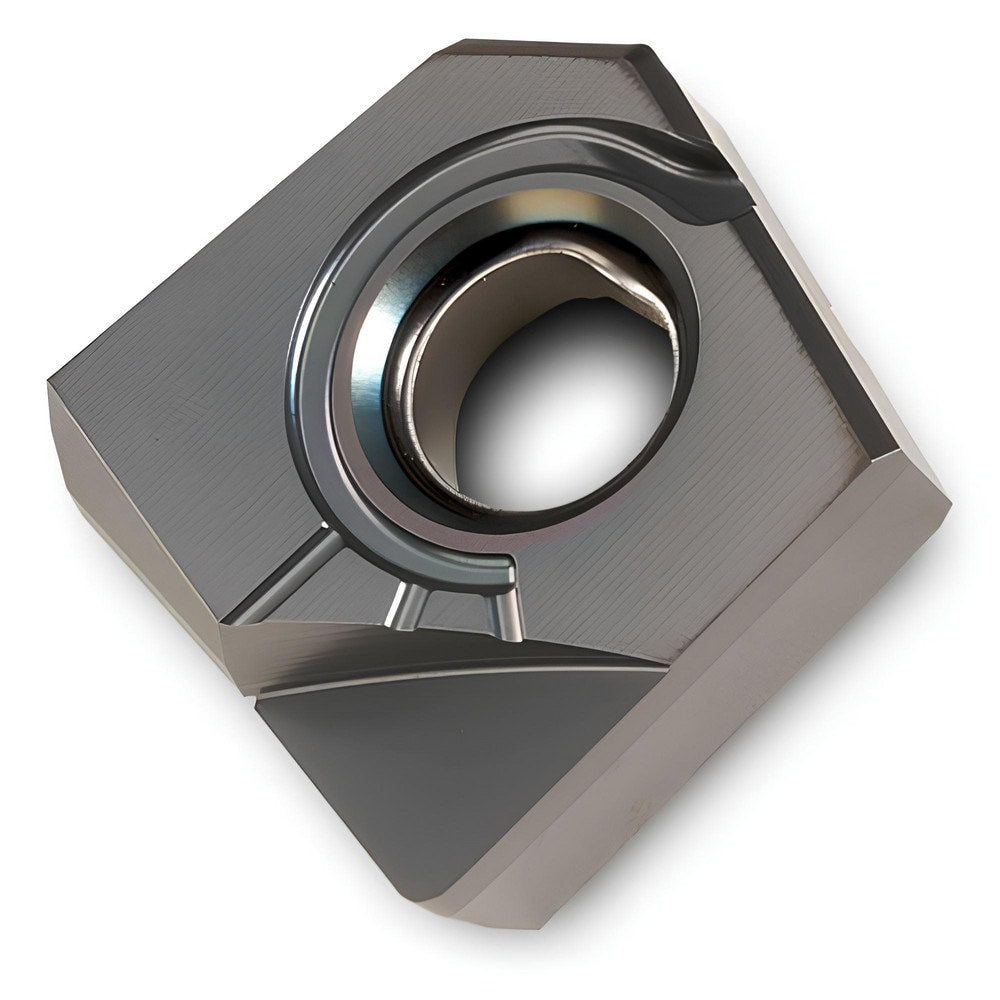

Brand: Ingersoll Cutting Tools / Part #: 6134787
Item #: 67308627
Brand: Ingersoll Cutting Tools
Model #: 6134787
Product Specifications
| Insert Style | GQHG |
| Insert Size Code | 190508 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2504 |
| Inscribed Circle (Inch) | 3/4 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | GQHG |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0299 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Bull Nose |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | GQHG190508R01 |
| Manufacturers Catalog Number | GQHG190508R01 IN2504 |
| Cutter Series Compatibility | 12A. |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Bull Nose |
| Length of Cut (mm) | 0.7600 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2050 |
| Multi-Use Tool | No |
