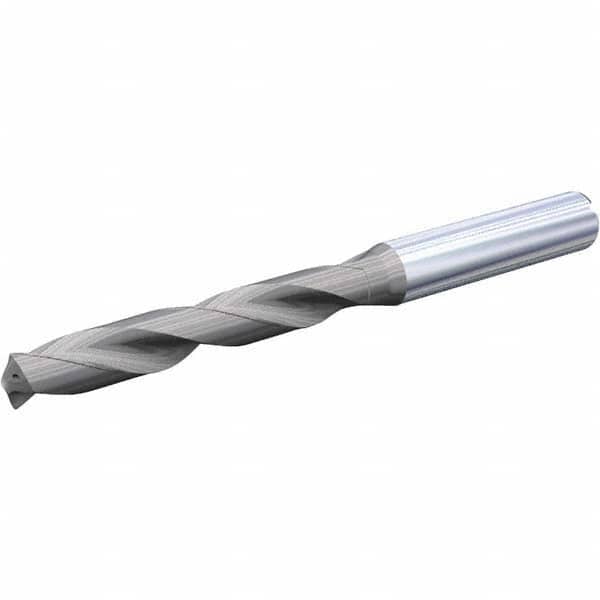

Kennametal - 3.4mm 140° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 12254157
Brand: Kennametal
Model #: 6782324
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.40 |
| Drill Bit Size (Decimal Inch) | 0.1339 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 40.00 |
| Overall Length (mm) | 78.00 |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 33.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.78 |
| Material Grade | KCP15B |
| Series/List | HPX |
