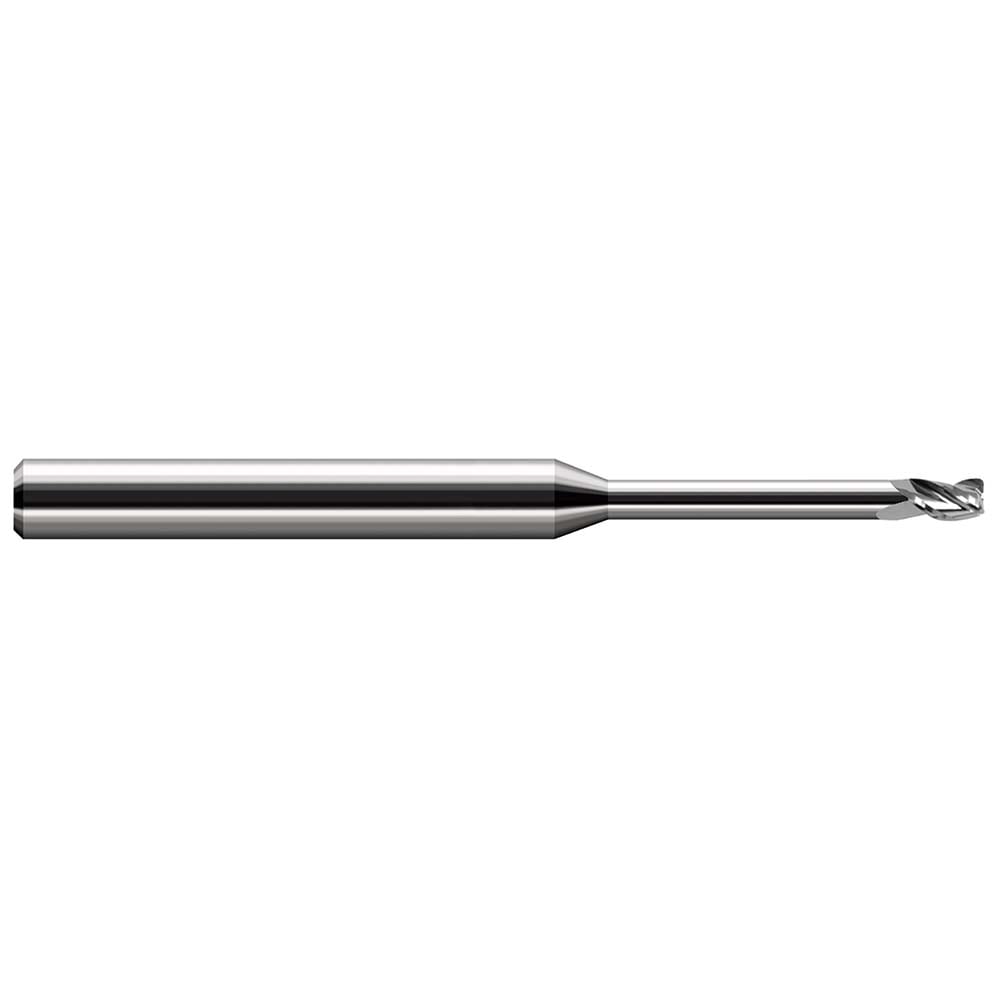

Corner Radius End Mill: 9/64" Dia, 0.22" LOC, 0.0300" Radius, 3 Flute, Solid Carbide
Item #: 05907571
Brand: Harvey Tool
Model #: 42409
Product Specifications
| Mill Diameter (Inch) | 9/64 |
| Mill Diameter (Decimal Inch) | 0.1406 |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 3 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 3 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2200 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Decimal Inch) | 1.1250 |
| Reach Length (Inch) | 1-1/8 |
| UNSPSC Code | 27112803 |
| Series | Stub Flute; Miniature End Mills - Corner Radius - Long Reach |
