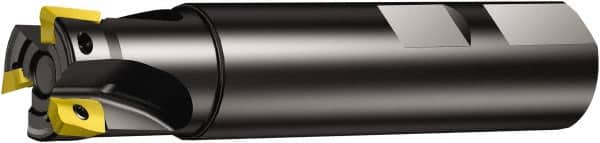

Sandvik Coromant - 1-1/4" Cut Diam, 15.6972mm Max Depth of Cut, 1-1/4" Shank Diam, 4" OAL, Indexable Square Shoulder Ramping End Mill - R390-17.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 54965421
Brand: Sandvik Coromant
Model #: 5740189
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 4 |
| Overall Length/Projection (Decimal Inch) | 4.0010 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Head Length (mm) | 40.13 |
| Head Length (Decimal Inch) | 1.5800 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-17.. |
| Shank Length (Decimal Inch) | 2.4210 |
| Maximum RPM | 25700 |
| Toolholder Material | Steel |
