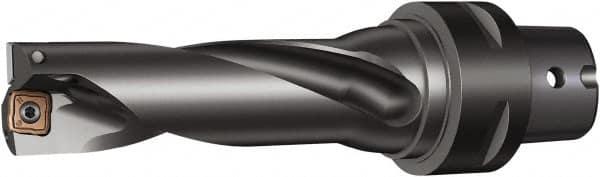

Sandvik Coromant - 127mm Max Drill Depth, 3xD, 41mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 54957188
Brand: Sandvik Coromant
Model #: 5765617
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 41.00 |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Depth (mm) | 127.00 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Diameter (mm) | 42.50 |
| Overall Length/Projection (mm) | 217.00 |
| Overall Length/Projection (Decimal Inch) | 8.5433 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 123.00 |
| Flute Length (Decimal Inch) | 4.8425 |
| Body Length (Decimal Inch) | 7.0193 |
| Body Length (mm) | 178.29 |
| Shank Length (mm) | 38.72 |
| Shank Length (Decimal Inch) | 1.5242 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.75 |
